플스3 커스텀 모드칩인 PSGroove Hermes v4 Payload 버전이 릴리즈 되었습니다.

본인의 닉네임을 도용해서 만든 중국산 모드칩에 분노하여 PSX-Scene (PS3 해킹 사이트)를 은퇴하겠다던 그의 마지막 프로그램입니다.

Hermes v4의 소스파일까지 공개하여 다른 해커들이 자신의 작업을 이어나가길 바라고 있네요.

<PS3 헤르메스 V4 페이로드 업데이트 내용>

• 파일 복사, 이동, 스텔스 기능 지원
• 내장/외장 하드디스크에 홈브류 프로그램 지원
• 노디스크 모드를 지원하는 36가지 게임 추가

PSGroove Hermes v4 Payload Released *Updated*

Hermes bids farewell, Half-Baked-style — fuck the company that used his name in their product, and to the rest of you sceners, you’re cool — Hermes is out. That said here is Hermes v4 as a final parting gift. Package includes two hex files, one for Teensy (AT90USB162 at 16Mhz), and the other AT90USBKEY (AT90USB1287 at 8Mhz). Source is there too. You know the drill, other builds to follow.

Hermes v4 Features:

• New Address 0x80000000007ff000 end of the payload at the end of the Kernel in order to add the extra code needed (the code is relocatable, if necessary).
• Added support syscall 8 with Stealth and other kernel functions such as copy, allocate memory, perform routine, add path table (for replacement / redirection of files and directories), etc. (see syscall8.h for details).
• Support for Homebrew in /apps_home/PS3_GAME similar to a flash drive or connected on /dev_usb000/PS3_GAME.
• Syscall redirection 36 games to run diskless /apps_home/PS3_GAME.

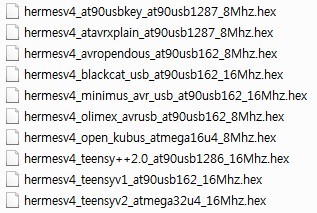

Update: My man optimusxcrime delivers the goods for the following:

• at90usbkey at90usb1287 8Mhz
• atavrxplain at90usb1287 8Mhz
• avropendous at90usb162 8Mhz
• blackcat usb at90usb162 16Mhz
• minimus avr usb at90usb162 16Mhz
• olimex avrusb at90usb162 8Mhz
• open kubus atmega16u4 8Mhz
• teensy++ 2.0 at90usb1286 16Mhz
• teensy 1.0 at90usb162 16Mhz
• teensy 2.0 atmega32u4 16Mhz

psgroove modified by Hermes
http://finalfantasia.com

This code is the result to disassemble port1_config_descriptor and to get some things from AerialX code

It have some features news:

- You can launch an EBOOT.BIN (unencrypted) from /dev_usb000 using the menu option "/app_home/PS3_GAME".

You must copy in the root folder of the USB device a PS3_GAME folder with the next content

PS3GAME
|------- USRDIR ---->EBOOT.BIN
|------- ICON0.PNG
|------- PARAM.SFO

- You can also launch backups using a manager. The original manager needs a Bluray disc to exit and run games, but i have added a new
feature to create a shortcut between "/app_home/PS3_GAME" and /dev_bdvd. So, it is possible to launch games without a bluray disc
in the tray, using this path (but you needs other manager or you needs eject the disc after leaving the original manager).

I have tested some games, as Uncharted 2, Heavently Sword and others, mounting it directly (in payload the code) and it works without any disc

Aditional notes:

Te syscall 36 is used to indicate the game path and it is used to create the shortcut detecting a pointer in the payload . I have relocated
"memory_patch_table" because the dedicated area is full and it hang if you copy more code.

To compile the PPU code you needs the compilers created by the ps3toolchain and fix the path in PS3_COMPILERS from Makefile.payload.

You needs also the AVR compilers (i use an AT90USBKEY) and maybe gcc compiler (for raw2payload utility in others system)

If you are using a PIC or other method, use port1_config_descriptor.h to replace the same thing.
